12V 24V Auto Solar Panel Battery Charge Controller 30A 20A 10A PWM LCD Display Solar Collector Regulator with Dual USB Output

Will be shipped in 3-5 days
Guaranteed safe checkout
View cart

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel battery automatically

There are optional 10A 20A 30A model

10A:

if your battery is 12V ,the max solar panel input is 25V 120W

if your battery is 24V ,the max solar panel input is 50V 240W

20A:

If your battery is 12V, the max solar panel input is 25V 240W

if your battery is 24V, the max solar panel input is 50V 480W

30A

if your battery is 12V ,the max solar panel input is 25V 360W

if your battery is 24V ,the max solar panel input is 50V 720W

Features:

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

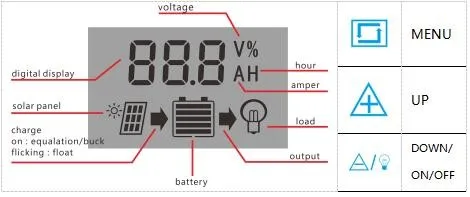

MENU: switch between different display, or to enter/exit setting by long press.

UP: press to increase value.

DOWN:presss to decrease value.

1.press the [Down] button to ON/OFF load manully at main display.

2.the work mode is working as below:
[24H] load output 24hours
[1-23H] load on after sunset and closed after setting hours
[0H] Dusk to dawn
Parameter:

MODEL

RBL-10A RBL-20A RBL-30A RBL-40A
Battery Voltage 12V 24V Auto
Charging Current 10A 20A 30A 40A
Discharging Current 10A 20A 30A 40A

Max Solar input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

all red color voltage X2 ,while using 24V system.

40A

Connection:

1.Connect the battery to the charge regulator – plus and minus.

2.Connect the photovoltaic module to the regulator – plus and minus.

3. Connect the consumer to the charge regulator – plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!
