3.3Nm Nema24 Stepper Motor CNC Kit 4 Axis TB6600HG Stepper Driver 5A(Peak) 45VDC

Will be shipped in 3-5 days
Guaranteed safe checkout
View cart

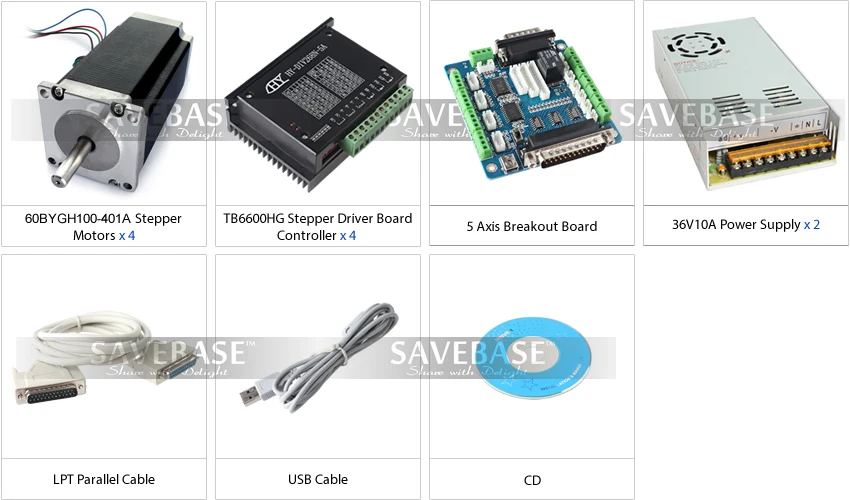

4 Pieces 5A 45VDC TB6600HG Microstep Drivers + 5 Axis Breakout Board
4 Pieces Nema24 3.3Nm/467 Oz-in Stepper Motors + 2 Pieces 36V10A Switching Power Supply

Description

The latest upgraded salable 5 axis breakout board is specially designed for the CNC Microstepper driver controller, such as TB6600HG, M542, M542H, MA560, MA860H, 2M542, 2M982 etc single axis stepper driver controller. With this 5 axis breakout board, any 1-5 Microstepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, etc..

The TB1H is a high performance microstepping driver based on the latest original TOSHIBA high-efficiency TB6600HG IC. The TB6600HG adopts single-chip PWM bipolar sinusoidal chopper to ensure the low vibration and high efficiency. Moreover, the brand new design with BiCD0.13 (45V) process technology on the chipset also ensures maximum 5.0A output current and 45V output withstand voltage. Consequently, as long as the current range of the stepper motor is within 0.2-5 amps, all the 2 Phase or 4 Phase of Nema17, Nema23, Nema24 stepper motors will work perfectly with this new-type TB6600HG Stepper Driver.

Click here for the specification of TB6600HG

Features
I. 5 Axis Breakout Board

High performance, cost-effective.

Maximum support 5-axis stepper motor driver controller.

Two types of ways to get power, 5V DC power supply or USB port to directly get power from PC.

Two-stage signal processing, smooth signal transmission, powerful anti-jamming.

5-input interface to define the Limit, Emergence-Stop, Midpoint-Alignment, Cutter-Alignment, etc..

Relay output control interface , accessed by the spindle motor or the air pump, water pump, etc..

5-axis work LED display, visually display the working condition of the stepper driver controller.

II. TB6600HG Stepper Driver Board Controller

High performance, cost-effective.

Automatic idle-current reduction.

Supply voltage up to 45V DC .

Output current up to 5.0A .

Suitable for 2-phase and 4-phase motors.

High speed optoelectronic isolation signal input.

Single-chip PWM bipolar sinusoidal chopper ensures low vibration and high efficiency.

1, 2, 4 (New Mode), 8, 16 adjustable microstep control, motors run more precisely and smoothly.

Equipped with the 3rd generation of breakout board, display panel and control pad to control the motor manually.

Cooling Aluminium Box Design for Cooling, and protect the driver board from being damaged by dirt, dust or other liquids.

Overload, overcurrent, overheat, overvoltage and undervoltage protection to avoid damaging your computer and devices.

III. Stepper Motor 60BYGH100-401A

Application

Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices.

For advising, such as brand, architechture mould, badge, nameplate, display boards, doorplate, furniture decoration, etc…

For processing various pattern mould.

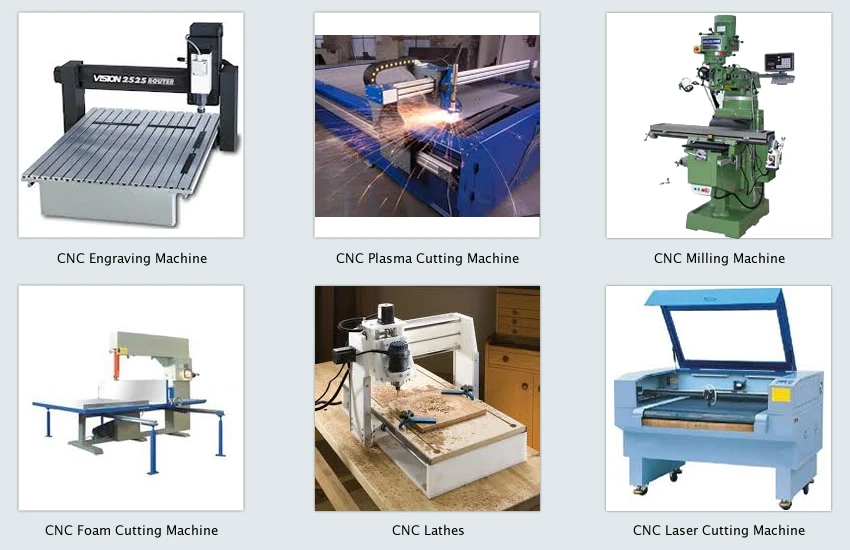

This kit is suitable for below typical CNC machines.

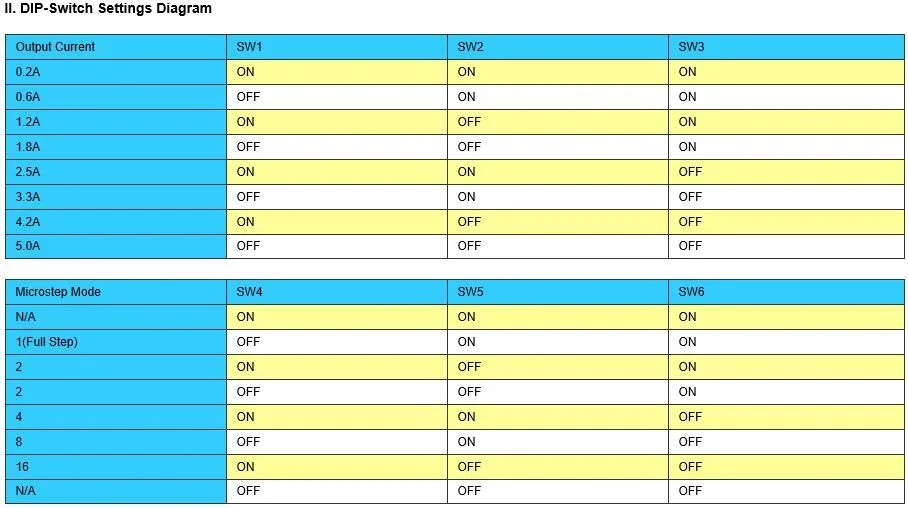

TB6600HG DIP-Switch Settings

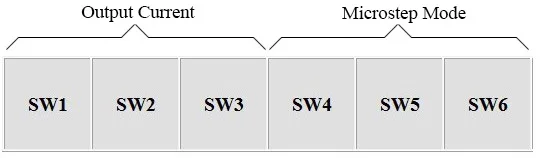

I. DIP-Switch Instructions
Interface Instructions
(3G 5 Axis Breakout Board)
(TB6600HG Stepper Driver)
Connection Diagrams
(Breakout-Board-Wiring)
(TB6600HG-Wiring)

Electrical Specifications of Breakout board
Input Voltage
5V DC via power adapter or directly get power from PC via USB port
Drive type Pulse + Direction + Enable Signal Control
Suitable Microstep Driver 2 Phase, 3 Phase, 4 Phase Microstep Driver (M542/M542H/MA860H/3MA2290 etc.)
Net weight Approx 80g
Dimensions 90 * 82 * 15mm (L*W*H)
Electrical Specifications Of TB6600HG Stepper Driver
Input Voltage 12V ~ 45V(Peak) DC
Output Current 0.2A ~ 5.0A (Peak)
Drive Type Pulse + Direction + Enable Signal Control (Single-Chip PWM Bipolar Sine Chopper)
Suitable Motor Nema17, Nema23, Nema24(Rated current: 0.2A-5.0A)
Operationg Environment & Other Specifications Of TB6600HG Stepper Driver
Cooling Natural Cooling or Fan Forced cooling
Operating Environment
Environment Avoid dust, oil fog, corrosive gas
Ambient Temperature 0 °C ~ 50°C (32°F ~ 122°F)
Humidity 40%RH ~ 90%RH
Operating Temperature 70°C (158°F) Max
Storage Temperature -20 °C ~ 65°C (-4°F ~ 149°F)
Total Weight Approx. 300g
Dimensions 105*85*35mm
Specifications Of Switching Power Supply
Input Voltage
90-132VAC/180-264VAC by switch
Input frequency 47~63Hz
Output voltage 36V
Total current 10A
Voltage adjustable range 36V±10%
Size 215*115*50mm
Weight 1100g
Specifications of Stepper Motor
Model
60BYGH100-401A
Shaft Single Shaft (Diameter:8mm; Length:24mm)
Rated Current 4.2A/Phase
Rated Voltage 3.36V
Step angle 1.8°±5%
Phase 2 Phases
Phase resistance 0.8x(1+10%)Ω/Phase
Phase inductance 4.0x(1+20%)mH/Phase
Holding torque 3.3Nm (Approx. 467 Oz-in)
Positioning torque 800gf.cm
Insulation resistance ≥100MΩ (500VDC)
Insulation class Class B
Weight 2.0Kg/Piece

Click here for the Mach3 software
