24V 600W/H Hybrid System Kit:
400W Wind Turbine Generator + 200W PV Solar Panel
100W Polycrystalline Solar Panel
1. Ideal Daily Output: 500W (depending on the availability of sunlight)

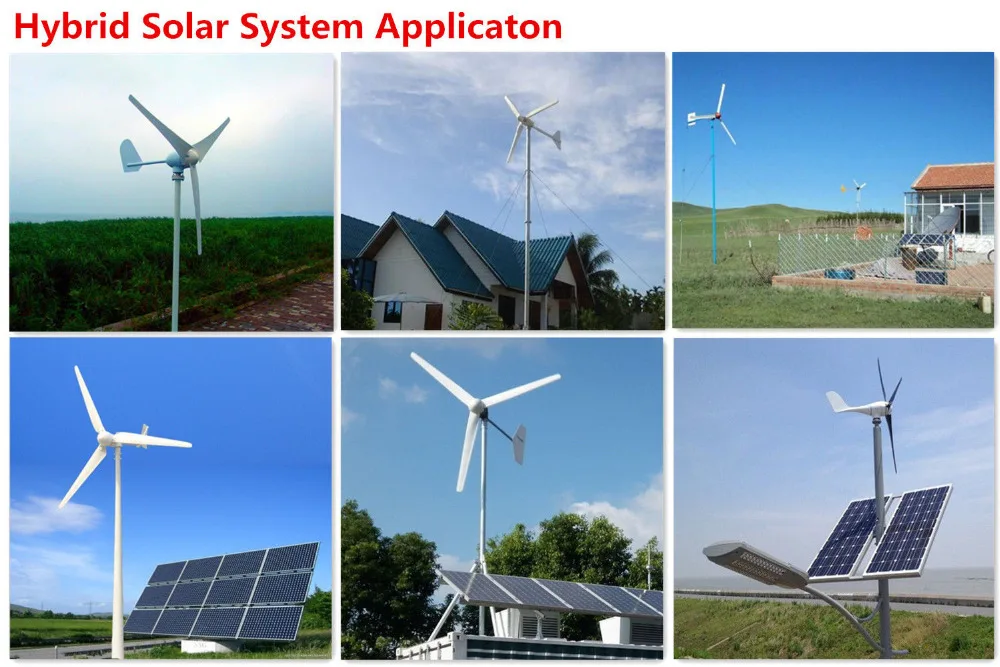

2. Basic component for on-grid, off-grid solar panel system, caravan, RV, boat, Green house solar panel system
3. Easy Installation with pre-drilled hole. each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connector.
4. By-Pass Diode minimized the impact of shade.
5. Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).
6. Resistance to Salt Corrosion and Humidity
7. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
as well as withstand high winds (2400Pa) and snow loads (5400Pa),
Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)
2. Low start-up/cut-in wind speed by unique electro-magnet design
3. Protect from over-speed by blade aerodynamic elasticity
4. High efficient and compact alternator With high performance NdFeB permanent magnet
5. With small moment generator of 0.08N.M for low start wind speed
6. Aluminum housing design for good heat sink ,light weight and tough environment
100W Polycrystalline Solar Panel
|Short circuit current (Isc)||6.2A|
|Working current (Iop)||5.59A|
|Temperate coefficient of Isc||(010+/- 0.01 )%/ degree|
|Temperate coefficient of Voc||– (0.38 +/-0.01 )%/ degree|
|Temperate coefficient of power Voc||-0.47%/degree|
|Temperature range||-40 degree to +80 degree|
|Frame||Heavy duty aluminum|
|Kind of glass and its thickness||Low Iron, high transparency tempered glass of 3.2mm|
|SLA Battery Voltage||12V|
|Dimensions (L x W x H)mm||996*665*35mm(26.16*39.3*1.37 in)|
25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate
|Cut-in Wind Speed||2.5m/s|
|Rated Wind Speed||10.5m/s|
|Maximum wind speed||35m/s|
|Rated Rotate Speed||800r/min|
|control system||Automatic fan dedicated controller|
|Inverter||Pure Sine wave Inverter|
|Generator style||Permanent-magento-phase A.C|
|Fan blade quantity||3|
|Wind leaf material||Carbon fibre composite|
|Tower diameter||Suggest more than 80 mm|
|Altitude of towe||4.5M-10M|
|Fan in the weight||8KG|
|Pole diameter||out diameter 7.4cm inner diameter 5.3cm|
1. 1x Wind Turbine Generator
3. 2pcs 100W polycrystalline solar panel
1. All goods are in stock, the transaction will be handled within 1 business day.
2. Items will be sent out within 3 days after we received your payment.
3. If the item shipping from China, we will send it visa Fedex or DHL, the price is not include the customs,
taxes, duties,these will be charged to buyers. If it shipping from our EU, USA,AU,RU stock, it will no tax and duty.
4. Please note us your contact details include your phone number for easy contacting from express guy.
Thank you for your kindly understand.
1. there is wind, the wind turbine blade in the rotation, the kinetic energy of the wind is converted into mechanical energy,
2. the controller will produce an alternating current into direct current put in battery, achieve the goal for electric power.
3. When battery when completely filled, the controller is disconnected charging current controller to uninstall state formation,
4. Inverter main function is will have a low voltage dc wind generator,
