CNC Router Kit 3 Axis M335 Motor Driver 0.5A-3.5A + 1.26 Nm Nema23 (FREE 3pcs L Type Stepper Motor Mounting Bracket)

Will be shipped in 3-5 days
Guaranteed safe checkout
View cart

3 x 3.5A 30VDC M335 Microstep Drivers + 1 x 5-axis Breakout Board
3 x Nema23 1.26Nm/175 Oz-in Stepper Motors + 1 x 24V 15A Switching Power Supply

Description

The latest upgraded 5 axis breakout board is specially designed for the CNC single axis 2-phase stepper driver controller. The breakout board uses high-performance three-state driver 74HC244 and Schmitt inverter 74HC14. The input signal is amplified, rectified, filtered to make the drive capability of the output signal more stable and stronger. With this 5 axis breakout board, any 1-5 Microstepper driver controllers can be directly controlled by the PC via the MACH3, KCAM4, WinPc Light etc. parallel-control CNC software.

The M335 is a high performance microstepping driver with low price. The M335 adopts single-chip PWM bipolar sinusoidal chopper to ensure low vibration and high efficiency. It is suitable for driving 2-phase and 4-phase hybrid stepping motors, so the Nema16, Nema17, Nema23 stepper motors with a 0.5A-3.5A current will be suitable.

In short, with this CNC Kit, you will get more benefits from the Kit on CNC work. Please purchase this kit with confidence.

Features

I. 5-Axis Breakout Board

High performance, cost-effective.

All the signals are opto-isolated which can protect your computer.

5-input interfaces for the Limits, Emergence-Stop, Cutter alignment etc.

Wide input voltage range: 12-24V, and with anti-reverse function.

One relay output control interface , accessed by the spindle motor or the air pump, water pump, etc.

Output 0-10V analog voltage for inverter to control the spindle speed.

II. M335 Stepper Driver

Low cost, Non-creeping phenomenon under low speed. Low noise and non-resonant region.

1, 2, 8, 16 adjustable micro step control for more accurate and smoother motor running.

Supply voltage up to 30V DC .

Output current up to 3.5A .

Suitable for 2-phase and 4-phase motors.

High speed optoelectronic isolation signal input.

Automatic idle-current reduction.

Protection of power reversal.

Application

Suitable for a variety of small sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotters, CNC machine tools, handling the devices.

Suitable for a wide range of stepping motors, from NEMA size 16/17/23.

Power Supply Selection
Voltage Selection

12-24V DC power supply for Nema 16/17 stepper motors.

24-30V DC power supply for Nema 23 stepper motors.

(High (≥ 30V) voltage will burn out the chips or stepper motors!!! Please be careful in choosing power supply.)

Current Selection

Output current of the power supply can be calculated by the following formula

Output current = Rated current of your stepper motors x quantity + 2A

If the supply current is too low for the drivers, it will easily burn the drivers.

Please SHUT DOWN the power before you plug or unplug the connectors and adjust the DIP Switches to avoid burning up the board.

M335 DIP-Switch Settings
Microstep Resolution Setting
Microstep resolution
SW1
SW2
1 OFF OFF
1/2 ON OFF
1/8 ON OFF
1/16 ON ON
Decay Mode Setting
Decay Mode
SW5
SW6
No Decay OFF OFF
Slow Decay ON OFF
Medium Speed Decay OFF ON
Fast Decay ON ON
Output Current Setting
SW3 SW4 Full Current Auto Half Current
Peak Current RMS Peak Current RMS
OFF OFF 3A 2.14A 1.5A 1.07A
ON OFF 2.25A 1.6A 0.6A 0.42A
OFF ON 1.5A 1.07A 1.5A 1.07A
ON ON 0.6A 0.42A 0.6A 0.42A
Interface Instructions

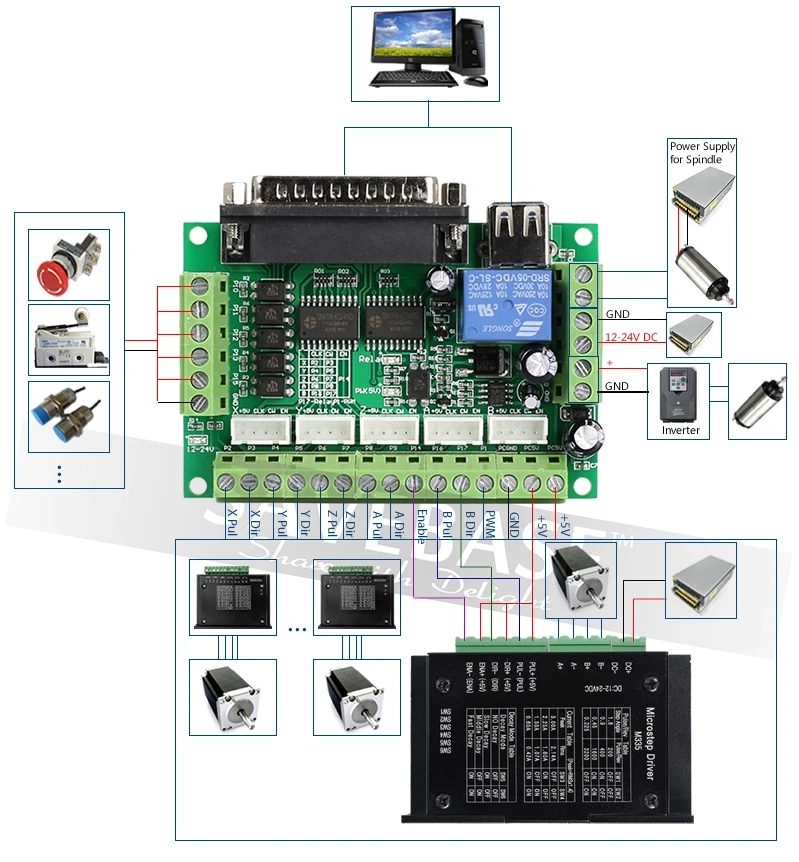

Connection Diagram
Specifications
Electrical Properties of 5Axis Breakout Board(ambient temperature Tj = 25°C)
Input Voltage
Get power from PC via USB port and 12-24V power supply(optional)
Drive type Pulse and Direction Signal Control
Suitable Microstep Driver 2 Phase Microstep Driver
Net weight Approx 75g
Dimensions 90 * 70 * 20mm (L*W*H)
Electrical Specifications Of M335 Microstepper Driver
Input Voltage
12V ~ 30V(Peak) DC
Output Current 0.5A ~ 3.5A (Peak)
Drive type Pulse + Direction + Enable Signal Control (Single-Chip PWM Bipolar Sine Chopper)
Suitable Motor Nema16, Nema17, Nema23
Isolation Resistance 500MΩ
Dimensions 97*75*35mm
Operationg Environment & Other Specifications Of M335 Microstepper Driver
Cooling Natural Cooling or Fan Forced cooling
Operating Environment
Environment Avoid dust, oil fog, corrosive gas
Ambient Temperature 0 °C ~ 50°C (32°F ~ 122°F)
Humidity 40%RH ~ 90%RH
Operating Temperature 70°C (158°F) Max
Storage Temperature -20 °C ~ 65°C (-4°F ~ 149°F)
Total Weight Approx. 200G
Specifications Of Switching Power Supply
Input Voltage
100-120VAC and 200-240VAC by Switch
Input frequency 50/60Hz
Output voltage 24V
Total current 15A
Voltage adjustable range 24V±10%
Size 210*115*50mm
Weight 1100G
Specifications of Stepper Motor
Model
57BYGH56-401A
Shaft Single Shaft (Diameter:6.35mm; Length:21mm)
Rated Current 2.8A/Phase
Step angle 1.8°±5%
Phase 2 Phases
Phase resistance 0.9x(1+10%)Ω/Phase
Phase inductance 0.9x(1+10%)Ω/Phase
Holding torque 1.26Nm (Approx. 175 Oz-in)
Positioning torque 300gf.cm
Weight 0.7Kg/Piece

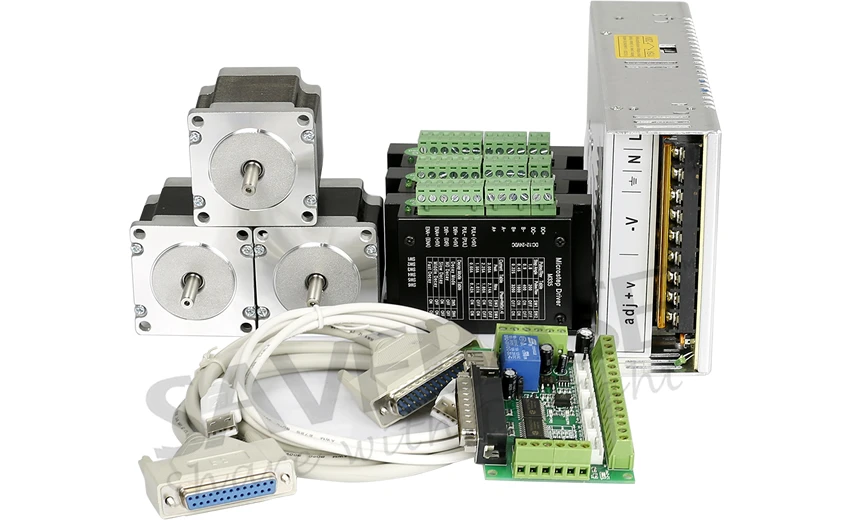

What’s In
