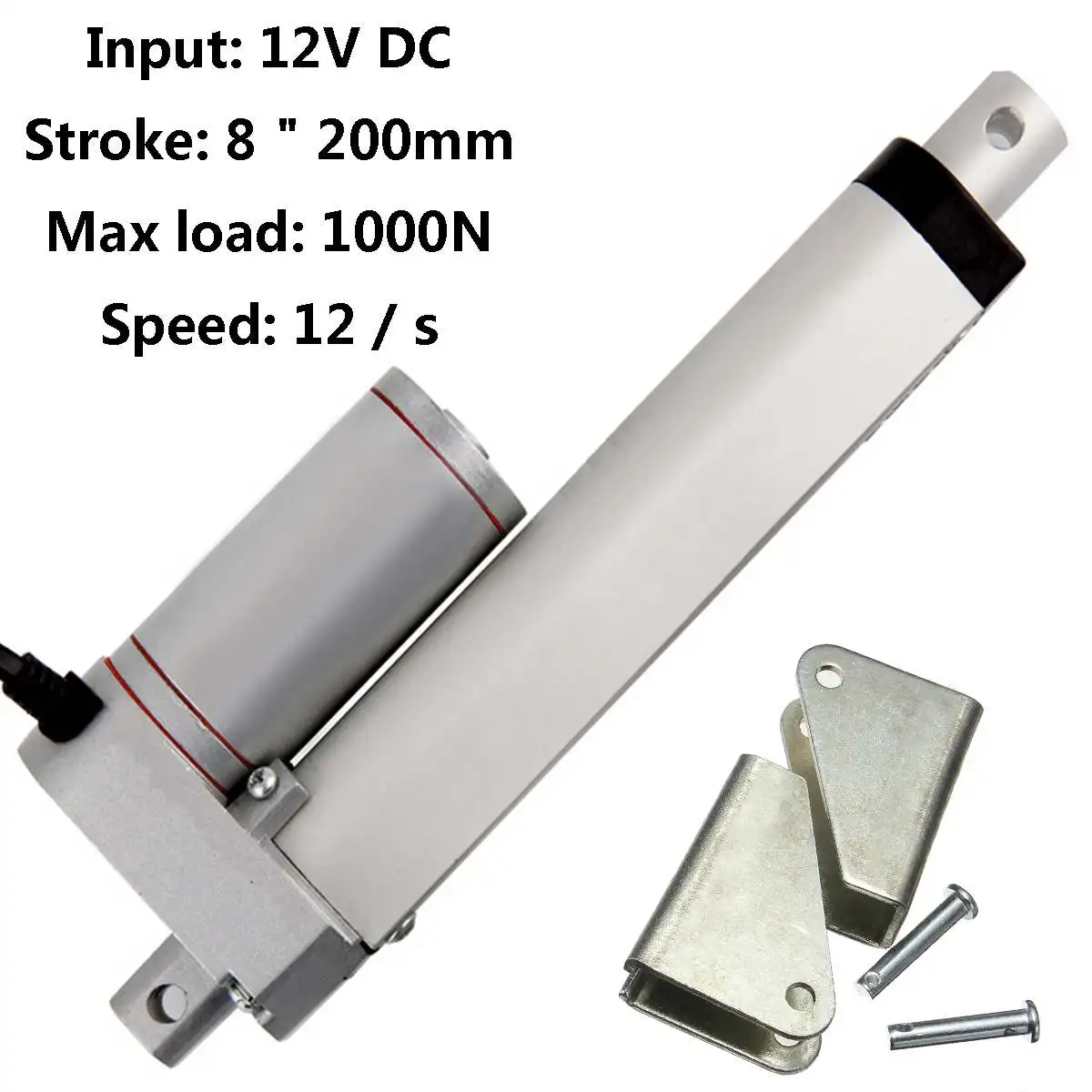

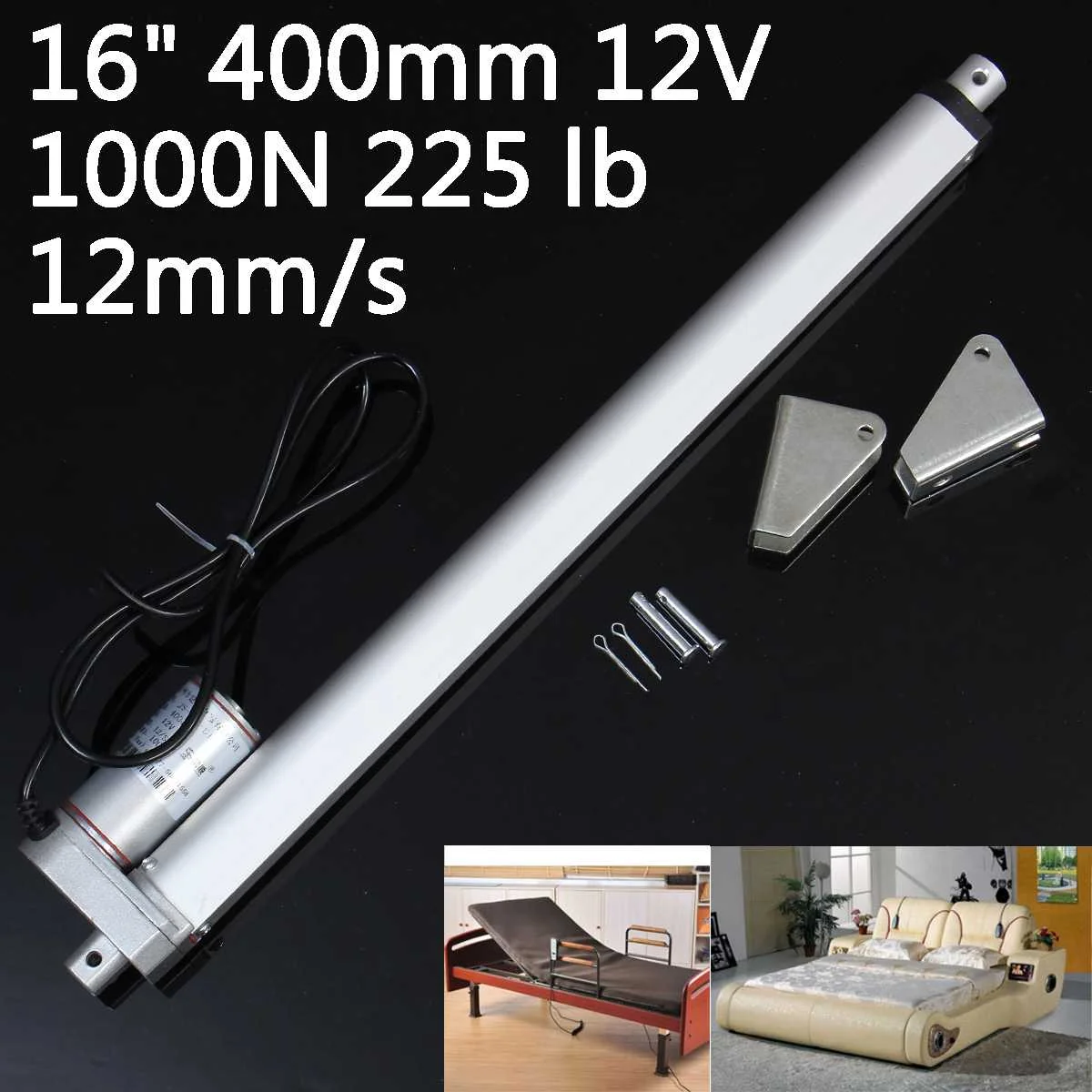

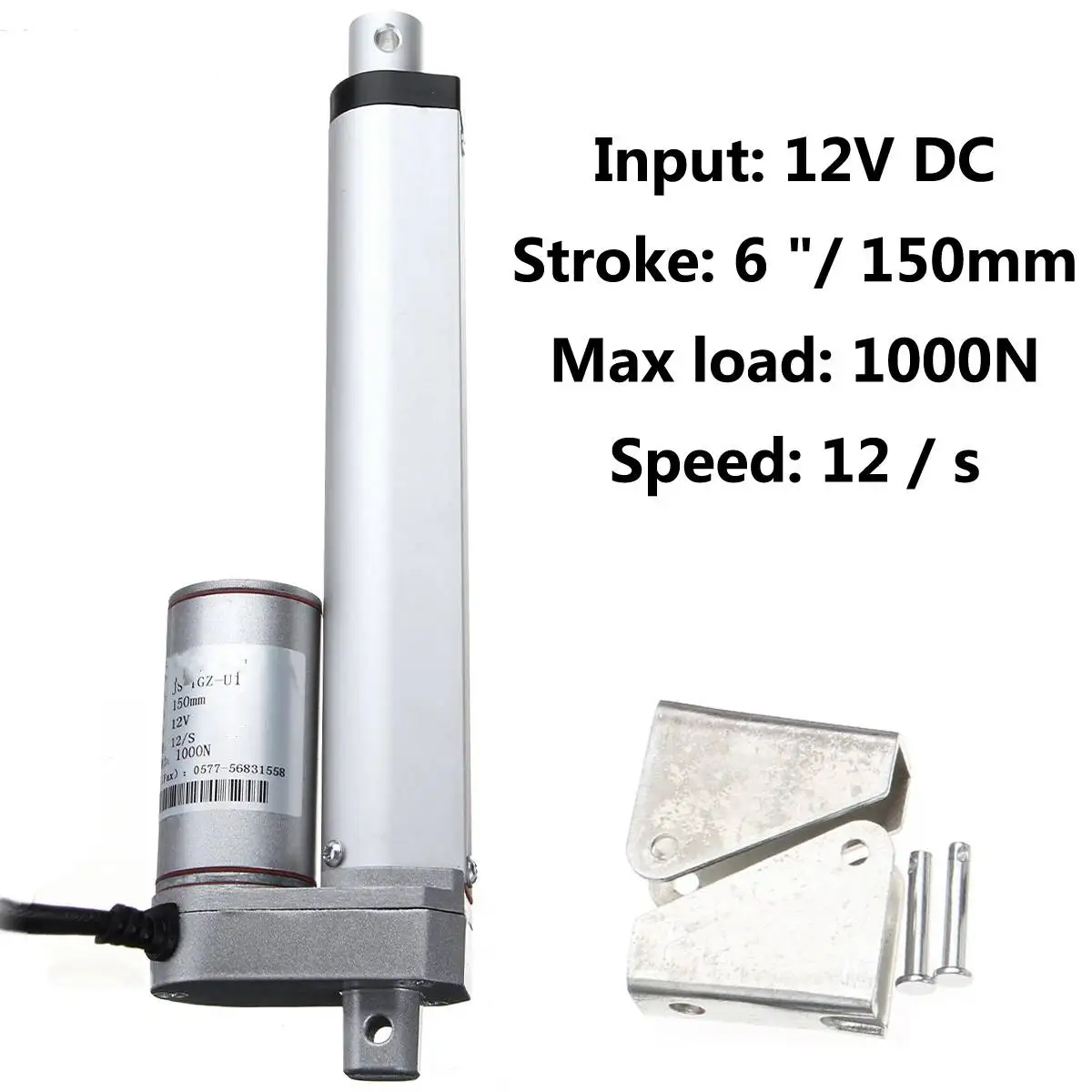

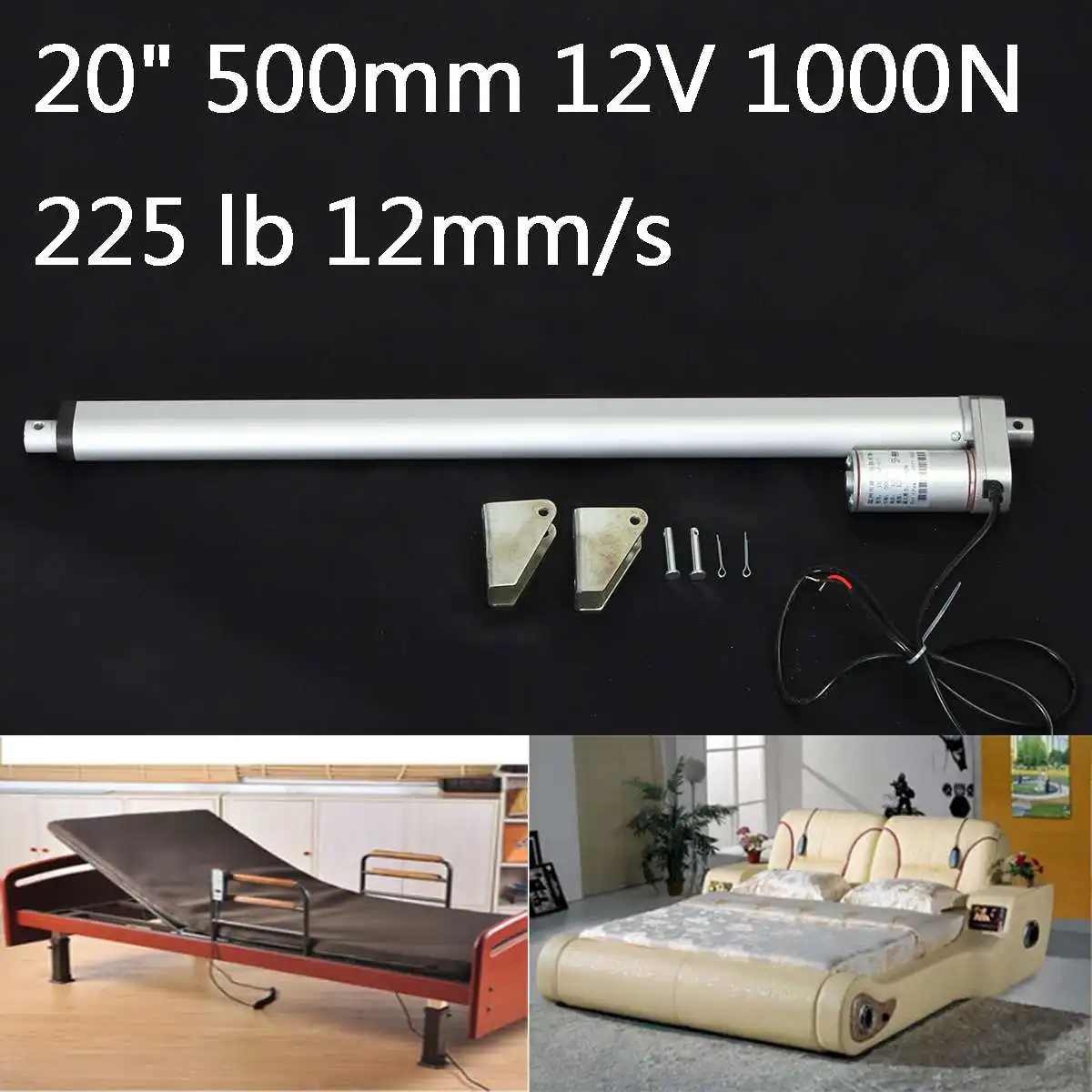

DC 12V Electric Linear Actuator 1000N 50-500mm Stroke Linear Motor Controller 12mm/s Electric Bracket 2″/4″/6″/8″/16″/20″

Will be shipped in 3-5 days
Guaranteed safe checkout
View cart


Name: 2″/4″/6″/8″/16″/20″ Multi-function Electric Linear Actuator Moto
Model: SKU580510
Size: 205x40x75mm
Weight: 950g
Permanent magnet DC motor drive; voltage 12V DC
Maximum push / pull: 150kg
Standard travel: S = 50mm/100mm/150mm/200mm/400mm/500mm

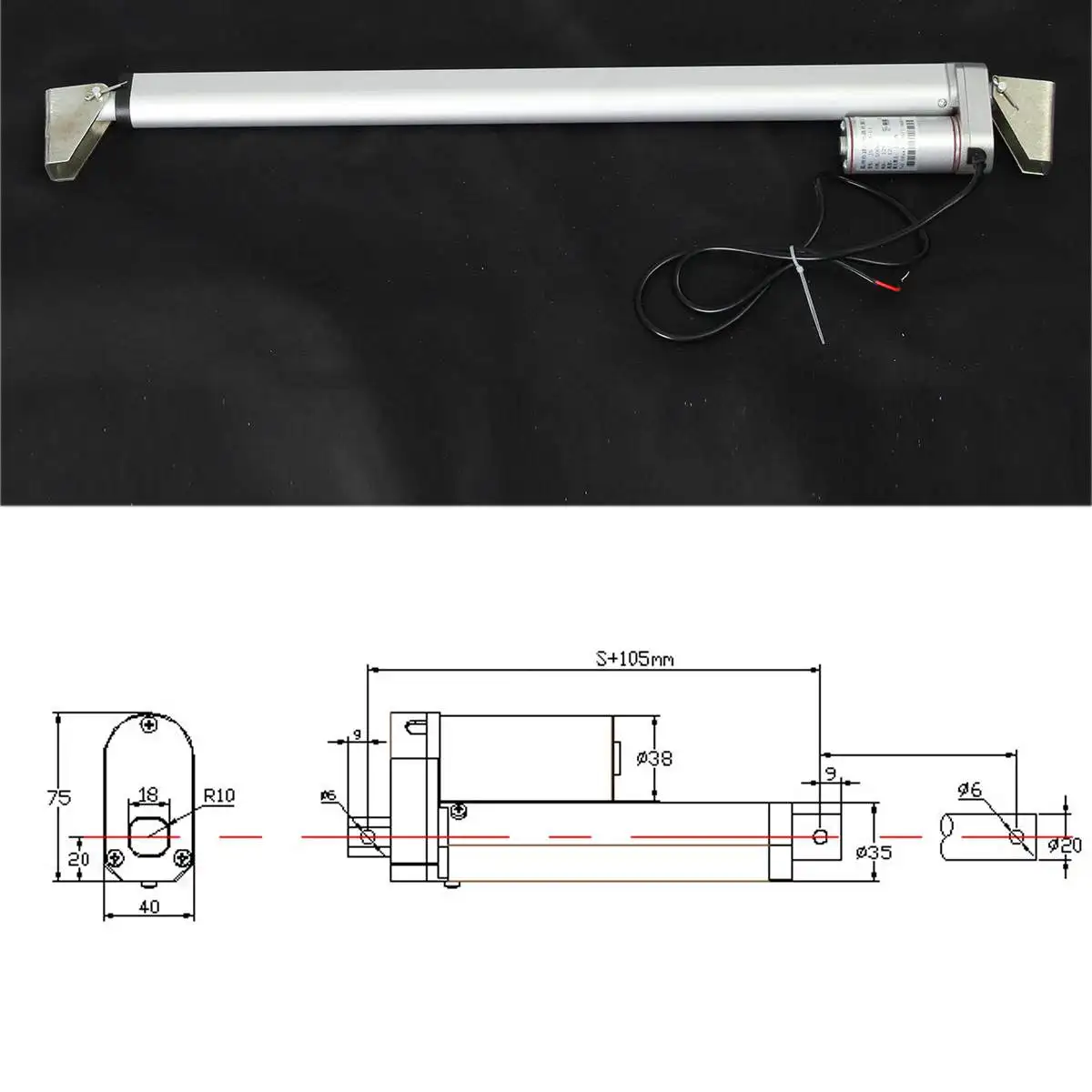

Minimums distance (the distance between the front and rear of the two holes): L = S (stroke) + 105mm putter fully extended before and after the distance between the two holes = 2XS (travel) + 105mm
No load speed: 10 / s 16 / s 20 / s 25 / s 29 / s
Speed and thrust relationship: 5mm / s (kg) -50s (50kg)
Ambient temperature: -26 degrees to +50 degrees
Standard protection level: IP54
Max thrust: 1000N (225 lb)
Travel speed: 12 mm/s
Noise level: ≤ 50dB

Electric putter, also known as push rod motor, electric cylinder and linear actuator. The electric putter is an electric drive that converts the motor’s rotational motion into a straight reciprocating motion of the push rod. Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control. Main use: electric medical bed, electric sofa, electric stand lift rod, industrial electric lift system, camera frame, video machine, wedding system. How it works: After the motor is slowed by the gear, drive a pair of screw nuts. The motor rotation into a linear motion, the use of motor reversal to complete the putter action. Such as through a variety of lever, rocker or connecting rod and other institutions to complete the rotation, shake and other complex movements. By changing the length of the lever arm, you can increase or increase the stroke.

Package Included
1 x Electric Linear Actuator Motor
2 x Brackets
