New-type CNC Router Lathe 1 Axis TB6600HG Stepping Motor Driver Board TB1H, 5A

Will be shipped in 3-5 days
Guaranteed safe checkout
View cart

High Performance TB6600HG Microstepping Driver

Descriptions

TB6600HG is a high performance microstepping driver based on the latest original TOSHIBA high-efficiency TB6600HG IC. The TB6600HG adopts single-chip PWM bipolar sinusoidal chopper to ensure the low vibration and high efficiency. Moreover, the brand new design with BiCD0.13 (45V) process technology on the chipset also ensures maximum 5.0A output current and 45V output withstand voltage. Consequently, as long as the current range of the stepper motor is within 0.2-5 amps, all the 2 Phase or 4 Phase of Nema17, Nema23, Nema24 and small-sized Nema34 stepper motors will work perfectly with this new-type TB6600HG Stepper Driver.

If you desire low noise, low heating, and low price, this is an excellent choice for you.

For further information, please click on the following links.

Comparison between TB6600HG and TB6560AHQ Chipset.
Specification of TB6600HG Microstep Motor Driver.

Features
TB6600HG Microstepping Driver

High performance, cost-effective

Automatic idle-current reduction

Supply voltage up to 45V DC

Output current from 0.2~5.0A

Suitable for 2-phase and 4-phase motors

Single-chip PWM bipolar sinusoidal chopper ensures low vibration and high efficiency

1, 2, 4 (New Mode), 8, 16 adjustable microstep control, motors run more precisely and smoothly

Overload, overcurrent, overheat, overvoltage and undervoltage protection to avoid damaging your computer and devices

Cooling Aluminium Box Design for Cooling, and protect the driver board from being damaged by dirt, dust or other liquids

Applications

Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices

For advising, such as brand, architechture mould, badge, nameplate, display boards, doorplate, furniture decoration, etc…

For processing various pattern mould

For carving portrait, scenery, handwriting, sealing, etc…

Power Supply Selection

12~24V DC power supply for Nema 17 stepper motors.

24~36V DC power supply for Nema 23/24 stepper motors.

36~45V DC power supply for Nema 34 stepper motors.

Output current of the power supply must exceed the sum of motor rated current.

Please SHUT DOWN the power before you plug or unplug the connectors to avoid burning up the board.

TB6600HG DIP-Switch Settings
Output Current
SW1
SW2
SW3
0.2A ON ON ON
0.6A OFF ON ON
1.2A ON OFF ON
1.8A OFF OFF ON
2.5A ON ON OFF
3.3A OFF ON OFF
4.2A ON OFF OFF
5.0A OFF OFF OFF
Microstep
SW4
SW5
SW6
N/A ON ON ON
1(Full Step) OFF ON ON
2 ON OFF ON
2 OFF OFF ON
4 ON ON OFF
8 OFF ON OFF
16 ON OFF OFF
N/A OFF OFF OFF
TB6600HG Interface Instruction

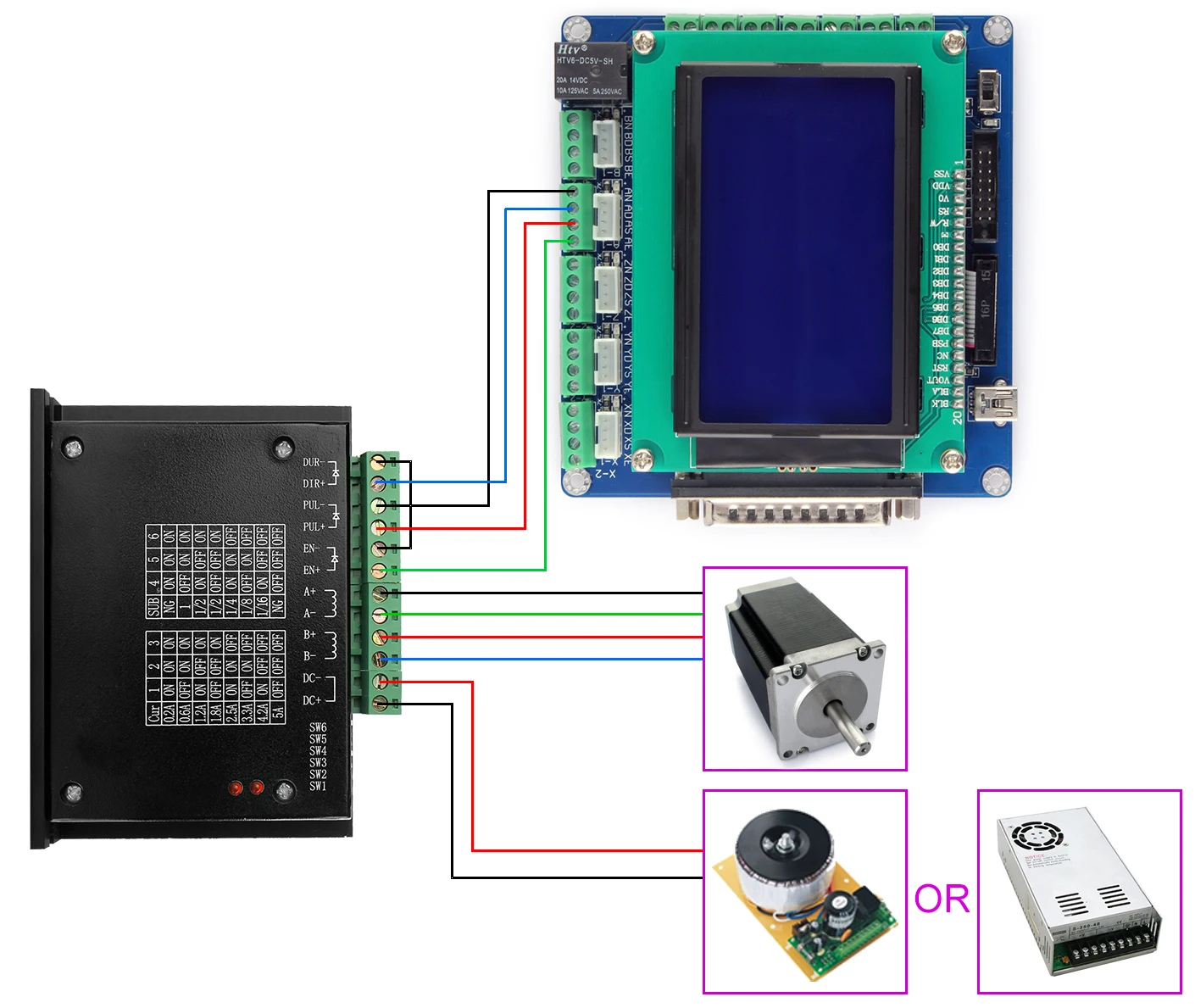

Connection Diagram for Reference

Electrical Specifications
Input voltage
12V-45V(Peak) DC
Output current 0.2A-5.0A (Peak)
Drive type Pulse + Direction + Enable Signal Control (Single-Chip PWM Bipolar Sine Chopper)
Suitable motor Nema17, Nema23, Nema24, small-sized Nema34 (Rated current: 0.2A-5.0A)
Net weight 250g
Dimensions 105*85*35mm
Operationg Environment & Other Specifications
Cooling
Natural Cooling or Fan Forced cooling
Operating Environment Environment Avoid dust, oil fog, corrosive gas
Ambient Temperature 0°C-50°C (32°F-122°F)
Humidity 40%RH-90%RH
Operating Temperature 70°C (158°F) Max
Storage Temperature -20°C-65°C (-4°F-149°F)
Total Weight Approx. 300g

1 x 1 Axis TB6600HG Microstep Driver Board (TB1H )

1 x CD
