SAVEBASE 4 Axis Tb6560 Cnc Stepper Motor Driver Board 0.5A-3.5A(Peak) With Aluminum Box

Will be shipped in 3-5 days
Guaranteed safe checkout
View cart

Warm Tip:

CNC 3 Axis Kit , CNC 4 Axis Kit , CNC 5 Axis Kit , CNC Stepper Motor, CNC Power Supply, CNC Stepper Motor Driver and CNC Breakout Board are available in our store as well , please click related words to enter the listing for buying if you need.

*NEW* 4 Axis TB6560AHQ Stepper Motor Driver Controller With Aluminium Box (0.5A-3.5A)

Product Features

Adopt Original Toshiba TB6560AHQ chip – High power, maximum 3.5A drive current chipset!

Adjustable “0.5A-3.5A(Peak Current)” Drive Current Settings: the ouput current of actual operation on each axis can be set to “20%, 50%, 75%, 100%” of the Maximum Current.

Adjustable Subdivision(Micro Step) Settings: 1, 1/2, 1/8, 1/16.

Adjustable Decay Mode Settings(4 modes):

I. 0% — No Decay Mode

II. 25% — Slow Decay Mode

III. 50% — Mid Decay Mode

IV. 100% — Fast Decay Mode

Automatic Semi-flow Control Function: adjustable semi-flow mode and adjustable semi-flow current , with multiple semi-flow model and semi-flow current settings.

With New-type Bipolar constant current chopping technology: High working precision, Low vibration, Low noise.

Professional design with super anti-jamming function for steadier running.

Overload, Overheat Protection Function: Protect the Computer, Driver board and other equipments from being damaged.

Cooling Aluminium box Design: Cooling function and Protect the driver board from being damaged by dirt, dust or other liquids.

Full closed-type optical isolation(Formal Photoelectric Coupler) to protect the user’s computer and equipment Standard parallel interface, supports software MACH2, MACH3(Default Software we recommend) , EMC2, KCAM4 etc.. (*For compatibility with other softwares, please feel free to contact us!)

Application Field

For processing various pattern mould

For advising, such as brand, architechture mould, badge, nameplate, display boards, doorplate, furniture decoration, etc.

For carving portrait, scenery, handwriting, sealing, etc.

Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices

Dip settings
Current Settings S1 S2 S3 S4 Micro Step Settings S5 S6 Decay Mode Settings S7 S8
20%–20% OFF OFF ON ON 1 ON ON No Decay ON ON
50%–20% OFF ON OFF ON 1/2 ON OFF Slow Decay ON OFF
75%–20% OFF OFF ON OFF 1/8 OFF OFF Mid Decay OFF ON
75%–50% ON OFF OFF OFF 1/16 OFF ON Fast Decay OFF OFF
100%–20% OFF ON ON ON
100%–50% OFF OFF OFF OFF
Current Settings Instruction
EXAMPLE 75%–20%
Working Current 3.5A *75%
Pause current 3.5A *20%

Note:If the drive board has abnormal noise under working or locking condition, you can solve the problem by adjusting the decay mode.

Further Details

Power supply DC 12-30V (not included, please feel free to contact us if you need it!) This driver get its power from the same unit as the steppers, it doesn’t require a separate power source.

Voltage Selection

12-16V DC power supply for Nema 17 stepper motors

16-24V DC power supply for Nema 23 stepper motors

(High voltage will burn up the chips or stepper motors!!!)

Ampertage Selection

Output current of the power supply can be calculated by the following expressions

Output current = Rated current of your stepper motors * quantity + 2A

(For example, if you want to drive 3 * 2A Nema 23 stepper motors, theoretically 24V 8A DC power supply is recommended, but higher power such as 24V 10A/15A also will be good. If you are not sure about the selection of power supply, please feel free to contact us for help)

Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3.5A max.

Suitable for unipolar or bipolar stepper motors.

Please SHUT DOWN the power before you plug or unplug the connectors to avoid burning up the board.

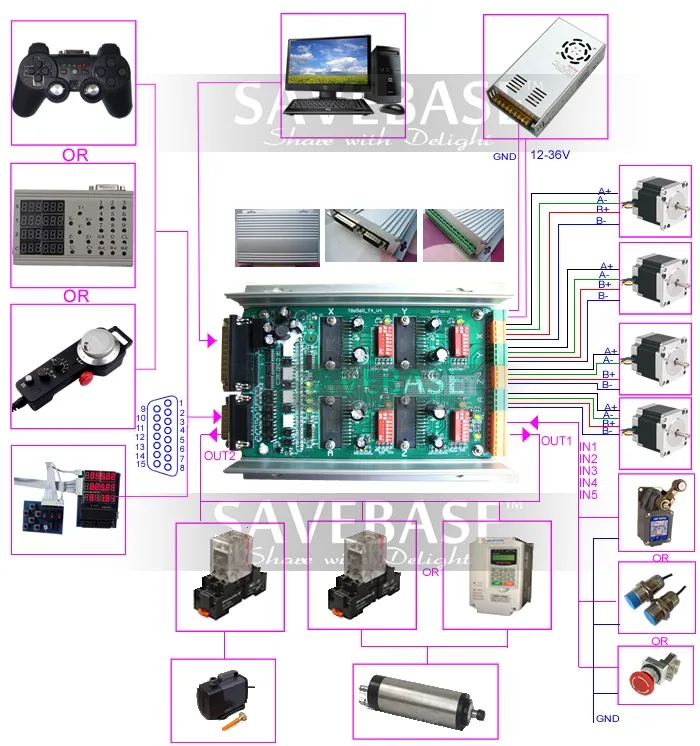

Connection Diagram

NOTE: These external tools on the left and bottom of the following picture are only for connection reference, we don’t have them to sell at the moment!

Specifications
Electrical properties (ambient temperature Tj = 25°C)
Input Voltage
12-30V DC power supply
Stepper motor drive current 0.5A – 3.5A/phase
Drive type Double-pole constant flow PWM actuation output
Compatible Stepper motors 2 or 4 phase, 4,6 or 8 lead stepper motors, 3.5A max.
Dimensions 20 * 15 * 5 cm (L*W*H)
What’s In

1 x New 4 Axis TB6560 Stepper Motor Driver With Aluminium Box 0.5A-3.5A

1 x DB25 parallel cable

1 x CD
